Validation of low-cost hydrophones for acoustic detection of bottlenose dolphins (Tursiops truncatus truncatus) in a controlled environment
DOI:
https://doi.org/10.47193/mafis.3842025011005Keywords:
Passive acoustics, cetaceans, whistleAbstract

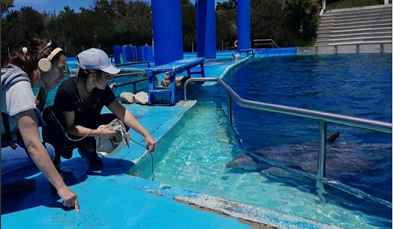

In recent years, passive acoustics has emerged as an effective tool for detecting cetaceans, particularly in difficult-to-observe species. In addition to being a non-invasive technique, it allows for animal monitoring without disturbing them, regardless of visibility conditions. However, the high cost of the equipment associated with this technique presents a significant challenge for developing countries. The objective of this project was to compare acoustic signals of the bottlenose dolphin (Tursiops truncatus truncatus) recorded using a commercial self-contained hydrophone and a low-cost, handcrafted alternative. Recordings were conducted at the Aquarium Mar del Plata, Argentina, using both hydrophones simultaneously over a 50-min period. Recorded signals were characterized and tonal signals (whistles) detected by each device were counted. Robust parameters for each whistle were obtained using the Raven Pro software. Based on the analysis of coincident whistles, it was determined that the measured parameters did not show significant differences between the two instruments, demonstrating the effectiveness of low-cost hydrophones for acoustically monitoring bottlenose dolphins in controlled environments, with the potential for use in other settings such as open water.
Downloads
References
Akiyama J, Ohta M. 2007. Increased number of whistles of bottlenose dolphins, Tursiops truncatus, arising from interaction with people. J Vet Med Sci. 69 (2): 165-170.
Au WWL. 1993. The sonar of dolphins. Nueva York: Springer-Verlag. p. 115-139.
Au WWL, Hastings MC. 2008. Principles of marine bioacoustics. New York: Springer. 510: 502-509.
Bazúa-Durán C, Au WWL. 2002. The whistles of Hawaiian spinner dolphins. J Acoust Soc Am. 112 (6): 3064-3072.
Berta A, Sumich JL, Kovacs KM. 2015. Sound Production for Communication, Echolocation, and Prey Capture. En: BERTA A, SUMICH JL, KOVACS KM, editores. Marine mammals. 3ra ed. San Diego: Academic Press. p. 345-395.
Buscaino G, Buffa G, Filiciotto F, Maccarrone V, Di Stefano V, Ceraulo M, Alonge G. 2015. Pulsed signal properties of free‐ranging bottlenose dolphins (Tursiops truncatus) in the central Mediterranean Sea. Mar Mamm Sci. 31 (3): 891-901.
Cabreira AG, Campodónico S, Villalba J. 2017. Passive acoustics for monitoring bottom contact of dredge. Proceedings of the 2017 IEEE/OES Acoustics in Underwater Geosciences Symposium (RIO Acoustics). IEEE. p. 1-3.
Cabreira AG, Lértora P, Wyngaard J, Madirolas A. 2015. Sound recordings of the Patagonian king crab (Lithodes santolla). Proceedings of the 2015 IEEE/OES Acoustics in Underwater Geosciences Symposium (RIO Acoustics). IEEE. p. 1-3.
Carpenter R, Silvia M, Cray BA. 2006. The design of a broadband ocean acoustic laboratory: detailed examination of vector sensor performance. Proceedings of the 8 Unattended Ground, Sea, and Air Sensor Technologies and Applications. SPIE. p. 180-190.
Charif RA, Waack AM, Strickman LM. 2010. Raven Pro 1.4 user’s manual. Ithaca: The Cornell Lab of Ornithology.
Charrier I, Huetz C, Prevost L, Dendrinos P, Karamanlidis AA. 2023. First description of the underwater sounds in the Mediterranean monk seal Monachus monachus in Greece: towards establishing a vocal repertoire. Animals. 13 (6): 1048.
Clausen KT, Wahlberg M, Beedholm K, Deruite S, Madsen PT. 2011. Click communication in harbour porpoises Phocoena phocoena. Bioacoustics. 20 (1): 1-28.
Cochran JC. 2022. Introduction to sonar transducer design. Oxford: Wiley. 544 p.
De Marco R, Di Nardo F, Lucchetti A, Virgili M, Petetta A, Li Veli D, Scaradozzi D. 2023. The development of a low-cost hydrophone for passive acoustic monitoring of dolphin’s vocalizations. Remote Sens. 15 (7): 1946.
Erbe C, Duncan A, Vigness-Raposa KJ. 2022. Introduction to sound propagation underwater. En: ERBE C, THOMAS JA, editores. Exploring animal behavior through sound. Vol. 1. Methods. Cham: Springer. p. 185-216.
Giardino GV, Cosentino M, Macchi AC, Loureiro JP, Heredia SR, Alvarez KC, Rodriguez DH. 2024. Detailed comparison of acoustic signals from rehabilitated and wild franciscanas (Pontoporia blainvillei) dolphins. Animals.14 (16): 2436.
Gordon J, Tyack PL. 2001. Acoustic techniques for studying cetaceans. En: EVANS PGH, RAGA JA, editores. Marine mammals: biology and conservation. Nueva York: Springer. p. 293-324.
Harder JH, Hill HM, Dudzinski KM, Sanabria KT, Guarino S, Kuczaj I, Stan A. 2016. The development of echolocation in bottlenose dolphins. Int J Comp Psychol. 29 (1): 181-200.
Hawkes M, Nehorai A. 1998. Acoustic vector-sensor beamforming and Capon direction estimation. IEEE Transactions on Signal Processing. 46 (9): 2291-2304.
Herzing DL. 2000. Acoustics and social behavior of wild dolphins: implications for a sound society. En: AU WWL, FAY RR, POPPER AN, editores. Hearing by whales and dolphins. New York: Springer. p. 225-272.
Hickey R, Berrow S, Goold J. 2009. Towards a bottlenose dolphin whistle ethogram from the Shannon Estuary, Ireland. Biol Environ Proc Royal Irish Acad. 109 B (2): 89-94.
Janik VM, Sayigh LS. 2013. Communication in bottlenose dolphins: 50 years of signature whistle research. J Comp Physiol A. 199: 479-489.
Jones B, Zapetis M, Samuelson M, Ridway S. 2020. Sounds produced by bottlenose dolphins (Tursiops): a review of the defining characteristics and acoustic criteria of the dolphin vocal repertoire. Bioacoustics. 29 (4): 399-440.
Lima ADM. 2017. Production and perception of acoustic signals in captive bottlenose dolphins (Tursiops truncatus): contextual use of social signals and recognition of artificial labels [tesis doctoral]. Rennes: Universidad de Rennes.
López-Marulanda JL. 2018. Acoustic Communication and Social Behavior in Bottlenose Dolphins (Tursiops truncatus) [tesis doctoral]. Gif-sur-Yvette: Université Paris Saclay (COmUE).
Macchi A. 2024. Caracterización sonora contextual de los delfines nariz de botella (Tursiops truncatus) en un ambiente controlado en Mar del Plata (Argentina) [tesis de licenciatura]. Mar del Plata: Facultad de Ciencias Exactas y Naturales, Universidad Nacional de Mar del Plata.
Mellinger DK, Stafford KM, Moore SE, Dziak RP, Matsumoto H. 2007. An overview of fixed passive acoustic observation methods for cetaceans. Oceanography. 20 (4): 36-45.
Pace DS, Pulcini M, Triossi F. 2012. Anthropogenic food patches and association patterns of Tursiops truncatus at Lampedusa island, Italy. Behav Ecol. 23 (2): 254-264.
Posit Software PBC. 2024. RStudio: integrated development environment for R. Version 2024.04.1 Build 748. [consultado julio 2024]. Boston: Posit. https://posit.co/.
Romero Vivas E, León-López B. 2010. Construction, calibration, and field test of a home-made, low-cost hydrophone system for cetacean acoustic research. J Acoust Soc Am. 128: 2438.
Santos MED, Louro S, Couchinho MN, Brito CM. 2005. Whistles of bottlenose dolphins (Tursiops truncatus) in the Sado Estuary, Portugal: characteristics, production rates, and long-term contour stability. Aquat mamm. 31: 453-462.
Saheban H, Kordrostami Z. 2021. Hydrophones, fundamental features, design considerations, and various structures: a review. Sensors Actuators A Phys. 329: 112790.
Shahbaba B. 2012. Biostastistics with R: an introduction to statistics through biological data. [consultado julio 2024]. Nueva York: Springer. DOI: https://doi.org/10.1007/978-1-4614-1302-8
Sueur J, Aubin T, Simonis C. 2008. Seewave, a free modular tool for sound analysis and synthesis. Bioacoustics. 18 (2): 213-226.
Terada T, Morisaka T, Wakabayashi I, Yoshioka M. 2022. Communication sounds produced by captive narrow-ridged finless porpoises (Neophocaena asiaeorientalis). J Ethol. 40 (3): 245-256.
[UICN] Unión Internacional para la Conservación de la Naturaleza. 2024. Lista roja de especies amenazadas: actualización de octubre de 2024. https://www.iucnredlist.org/.
Urick RJ. 1983. Principles of underwater sound. 3ra ed. Nueva York: McGraw-Hill. 423 p.
Vermeulen E, Bastida R, Berninsone LG, Bordino P, Failla M, Fruet P, Harris G, Iñíguez M, Marchesi MC, Petracci P, et al. 2017. A review on the distribution, abundance, residency, survival and population structure of coastal bottlenose dolphins in Argentina. Lat Am J Aquat Mamm. 12 (1-2): 2-16.
Vermeulen E, Fruet P, Costa A, Coscarella M, Laporta P. 2019. Tursiops truncatus ssp. gephyreus. The IUCN Red List of Threatened Species 2019: e.T134822416A135190824. DOI: https://dx.doi.org/10.2305/iucn.uk.2019-3.rlts.t134822416a135190824.en
